Construction

Morimatsu is the world's leading supplier of core equipment and modular construction. The manufacture of core equipment covers oil and gas, oil refining, chemical industry, hydrometallurgy and other fields, and provides core units for PTA, PVC, MMA, HPAL(High Pressure Acid Leaching) and other process units. Morimatsu has been deeply engaged in the field of modular construction for more than ten years, and has provided more than 200 sets of process modules for the marine engineering and chemical fields, which has effectively reduced the cost for the owners, promoted the progress of the projects, reduced the requirements of on-site construction and on-site warehousing, and effectively avoided the cost risk from on-site construction.

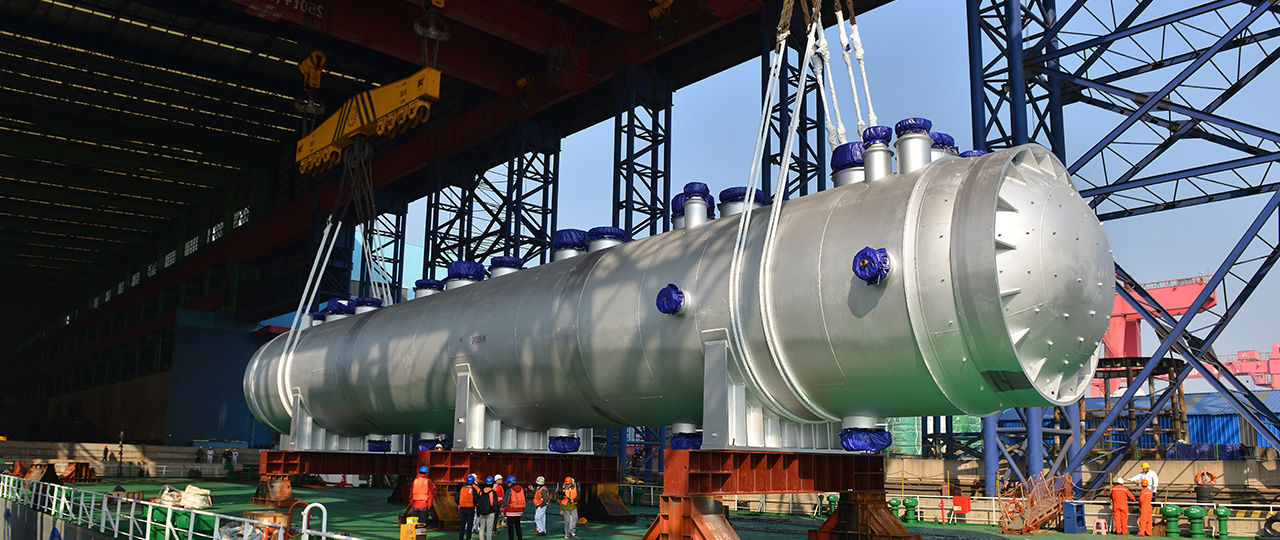

Core Equipment

After more than 30 years of efforts, Morimatsu has become a qualified supplier for Shell, BP, Total, ExxonMobil, QP, Sinopec, CNPC, CNOOC, BASF, BAYER, Covestro and other domestic and foreign end users. It has close cooperation with almost all engineering companies in the world and has become the preferred manufacturer for many Licensors.

Certificates: ISO9001, ISO14001, ISO45001, ISO27001, ASME U/U2/U3/NB/R, CE MARK, CUTR, Super HP Vessel (A6), Special Equipment Design License

Maximum size: Maximum diameter: 20m,Maximum length: 200m, Maximum thickness: 350mm

Metal materials: More than 70 kinds of materials (carbon steel and stainless steel, chromium molybdenum steel, nickel and nickel-based alloys, titanium and titanium-based alloys, zirconium, tantalum, aluminum & aluminum alloys, copper and other materials)

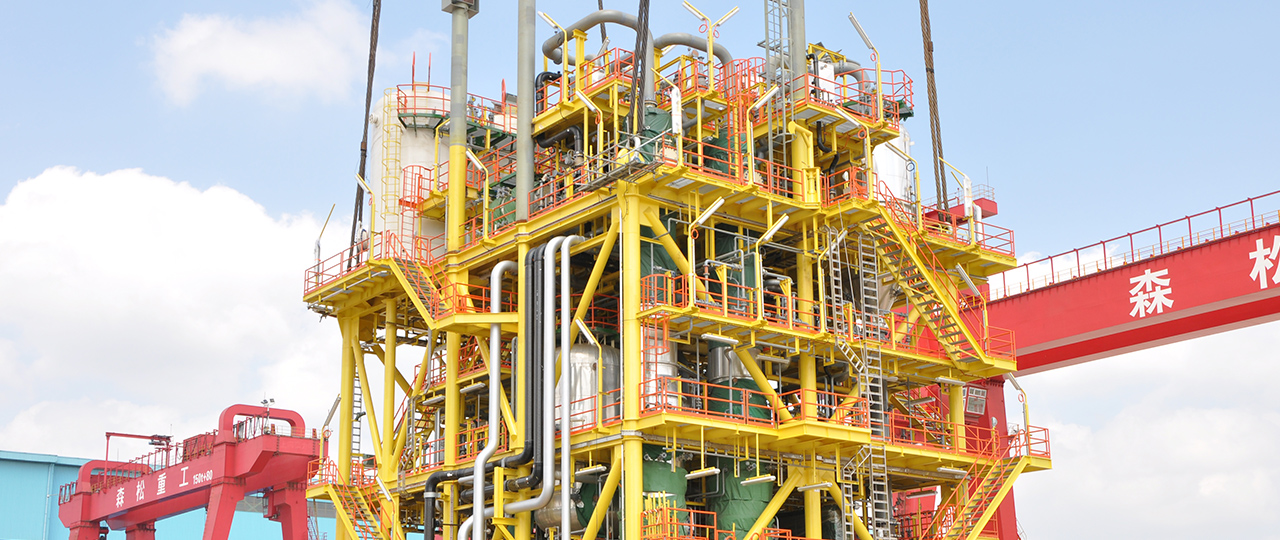

Modules

All the work including the welding of pressure piping and steel structures, equipment assembly, thermal insulation, sandblasting, painting and packaging are performed under monitoring of Morimatsu's own quality control department.

Certificates:

Structural: GB 50009/50011/50017, AISC 360/341, AS 4100, EN, API RP 2A-WSD/LRFD, ABS,DNV-OS-C101/10 ,CSA S16-09;

Piping: GB, ASME 31.3, API 14E, EN 13480, CSA B51;

Electrical: IEC, AS, ATEX, CSA, NEC, CEC;

Quality: GB, ASME, AWS D1.1/D1.8, AISC, ABS, DNV;

Construction: GB, JGJ, ASME, AWS, AISC 303, AS, API, DNV-OS-C401, CSA W59-03, CSA W47.1-03

Maximum size: Maximum unit weight: 1,100T, Maximum weight: 13,550T

Transportation capacity: Based on the self-owned wharf with a depth of 9m, modules with a unit weight of less than 5,000 tons can be shipped to everywhere over the world.
